高均匀条形光源
服务热线：13924345841
详细介绍
高均匀条形光源经结构优化调整，贴片LED灯珠密集排列，光源发光区视场角更大，亮度高，性能稳定，可根据不同长度自由定制，配合不同颜色，不同角度多个光源自由组合，照射角度也可根据检测需求随意调整。

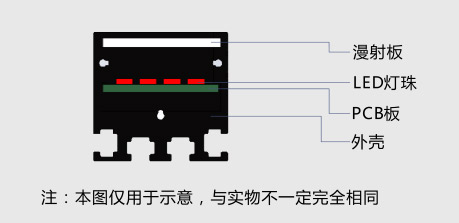

剖面结构图

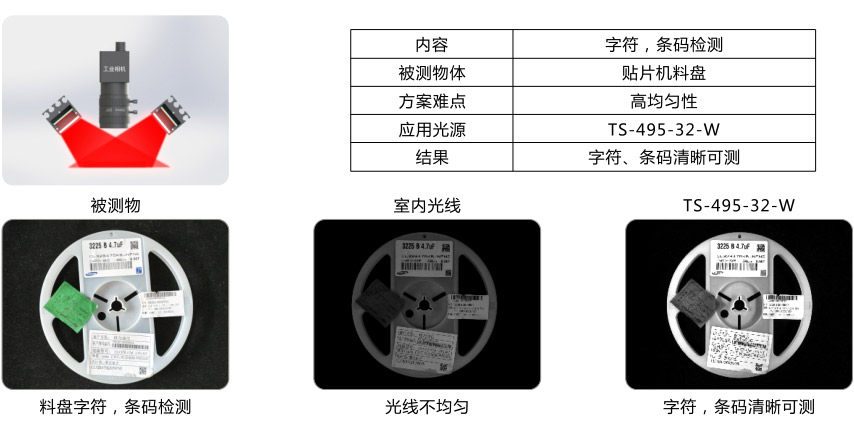

打光案例
产品型号规格
| 命名规则 Naming rules | TS 高均匀条形光源 High Uniform Strip Light Source | - | 45 发光长度 Luminous length | - | 12 发光宽度 Luminous width | - | R 发光颜色 Luminous color |
| 序号 Serial number | 型号 Model | 电压 Voltage | 功率(W) power | 重量(g) weight | ||||
|---|---|---|---|---|---|---|---|---|
| R | W/B/G | IR（940nm） | ||||||
| 1 | TS-45-12 | 24 | 1.2 | 1.2 | 1 | ≈60 | ||
| 2 | TS-45-22 | 24 | 1.8 | 2.4 | 2 | ≈70 | ||
| 3 | TS-45-32 | 24 | 2.4 | 3.6 | 3 | ≈90 | ||
| 4 | TS-90-12 | 24 | 2.4 | 2.4 | 2 | ≈90 | ||
| 5 | TS-90-22 | 24 | 3.6 | 4.8 | 4 | ≈110 | ||
| 6 | TS-90-32 | 24 | 4.8 | 7.2 | 6 | ≈150 | ||
| 7 | TS-135-12 | 24 | 3.6 | 3.6 | 3 | ≈120 | ||
| 8 | TS-135-22 | 24 | 5.4 | 7.2 | 6 | ≈150 | ||
| 9 | TS-135-32 | 24 | 7.2 | 10.8 | 9 | ≈200 | ||
| 10 | TS-180-12 | 24 | 4.8 | 4.8 | 4 | ≈150 | ||
| 11 | TS-180-22 | 24 | 7.2 | 9.6 | 8 | ≈190 | ||
| 12 | TS-180-32 | 24 | 9.6 | 14.4 | 12 | ≈260 | ||
| 13 | TS-225-12 | 24 | 6 | 6 | 5 | ≈180 | ||
| 14 | TS-225-22 | 24 | 9 | 12 | 10 | ≈220 | ||
| 15 | TS-225-32 | 24 | 12 | 18 | 15 | ≈310 | ||
| 16 | TS-270-12 | 24 | 7.2 | 7.2 | 6 | ≈210 | ||
| 17 | TS-270-22 | 24 | 10.8 | 14.4 | 12 | ≈260 | ||
| 18 | TS-270-32 | 24 | 14.4 | 21.6 | 18 | ≈370 | ||
| 19 | TS-315-12 | 24 | 8.4 | 8.4 | 7 | ≈230 | ||
| 20 | TS-315-22 | 24 | 12.6 | 16.8 | 14 | ≈290 | ||
| 21 | TS-315-32 | 24 | 16.8 | 25.2 | 21 | ≈420 | ||
| 22 | TS-360-12 | 24 | 9.6 | 9.6 | 8 | ≈260 | ||
| 23 | TS-360-22 | 24 | 14.4 | 19.2 | 16 | ≈330 | ||
| 24 | TS-360-32 | 24 | 19.2 | 28.8 | 24 | ≈480 | ||
| 25 | TS-405-12 | 24 | 10.8 | 10.8 | 9 | ≈290 | ||
| 26 | TS-405-22 | 24 | 16.2 | 21.6 | 18 | ≈370 | ||
| 27 | TS-405-32 | 24 | 21.6 | 32.4 | 27 | ≈540 | ||
| 28 | TS-450-12 | 24 | 12 | 12 | 10 | ≈310 | ||
| 29 | TS-450-22 | 24 | 18 | 24 | 20 | ≈400 | ||
| 30 | TS-450-32 | 24 | 24 | 36 | 30 | ≈590 | ||
| 31 | TS-495-12 | 24 | 13.2 | 13.2 | 11 | ≈340 | ||
| 32 | TS-495-22 | 24 | 19.8 | 26.4 | 22 | ≈440 | ||
| 33 | TS-495-32 | 24 | 26.4 | 39.6 | 33 | ≈650 | ||
| 34 | TS-540-12 | 24 | 14.4 | 14.4 | 12 | ≈370 | ||
| 35 | TS-540-22 | 24 | 21.6 | 28.8 | 24 | ≈480 | ||
| 36 | TS-540-32 | 24 | 28.8 | 43.2 | 36 | ≈710 | ||
| 37 | TS-585-12 | 24 | 15.6 | 15.6 | 13 | ≈390 | ||
| 38 | TS-585-22 | 24 | 23.4 | 31.2 | 26 | ≈510 | ||
| 39 | TS-585-32 | 24 | 31.2 | 46.8 | 39 | ≈760 | ||
| 40 | TS-630-12 | 24 | 16.8 | 16.8 | 14 | ≈420 | ||
| 41 | TS-630-22 | 24 | 25.2 | 33.6 | 28 | ≈550 | ||
| 42 | TS-630-32 | 24 | 33.6 | 50.4 | 42 | ≈820 | ||
| 43 | TS-855-12 | 24 | 22.8 | 22.8 | 19 | ≈560 | ||
| 44 | TS-855-22 | 24 | 34.2 | 45.6 | 38 | ≈740 | ||
| 45 | TS-855-32 | 24 | 45.6 | 68.4 | 57 | ≈1110 | ||
| 46 | TS-990-12 | 24 | 26.4 | 26.4 | 22 | ≈650 | ||
| 47 | TS-990-22 | 24 | 39.6 | 52.8 | 44 | ≈860 | ||
| 48 | TS-990-32 | 24 | 52.8 | 79.2 | 66 | ≈1290 | ||
条行光源长度可以根据要求加长（长度为45mm的倍数）。 The length of the strip light source can be lengthened according to the requirements (multiples of 45 mm in length). 标配漫射板为UD系列； Standard diffuse panel is UD series ； | ||||||||
